Alarm parameters are programmable and in some instances trip
and recovery time settings can be altered.
• Over voltage
• Under voltage
• Dry Run (under current)
• Overload (over current)
• Pump stall
• Open phase
• Phase reversal
• ‘Anti-seize’ function in drainage mode
• Last 5 error log

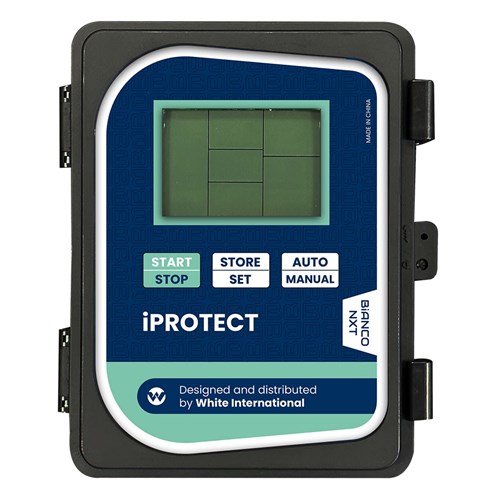

I-protect -_Protect has an audible alarm and a flashing screen to indicate
an alarm state

P R OT E C T I O N F U N C T I O N S
• Switched input - float, pressure switch, temperature switching
• Level probe (capacitance type probes)

T E C H N I C A L DATA
RATED VOLTAGE (V) 3 Ph 400V +10/-6%
MAX AMPERAGE 12 amps
DEGREE OF PROTECTION I.P. 65
WORKING HUMIDITY 20% - 90% RH
POWER CABLE & MATERIALS None - bare controller only
WORKING TEMPERATURE -25degC to 55 deg C
UNIT DIMENSIONS (L X W X H) 275mm x 200mm x 125mm
UNIT WEIGHT (NET) 1.168 kg
